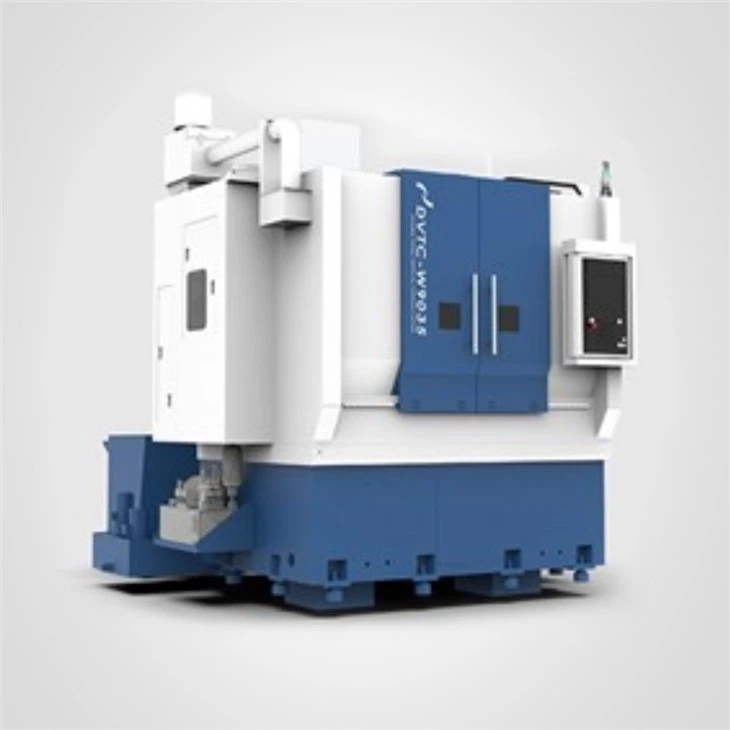

CNC Vertical Turning Lathe Machine For Auto Wheel Hub Car Rim
This machine is very suitable for the use of batch processing of production and machine repair workshop. The processed dimension accuracy of parts can reach level IT7 on this machine, and surface roughness can reach level 1.6. The machine worktable Configuration with fast-moving device, overload safety device, vertical and horizontal cross handle nut handle.
- Product Introduction
Introduction
CNC Vertical Turning Lathe Machine For Auto Wheel Hub Car Rim is a kind of equipment mainly used for processing common 12-22 inch car wheels and truck wheels. In addition, it can also be used for turning disc-like parts. It is popular because of its high machining accuracy and automated machining process, which is very suitable for the manufacture of automobiles, motorcycles, mechanical parts, molds, and other products. In addition, ultra-high-performance concrete and fine casting technology make it overall good shock resistance and corrosion resistance, so it is more durable.
Features
CNC Vertical Turning Lathe Machine For Auto Wheel Hub Car Rim adopts the popular oblique body structure, and the compact integrated design makes it more maneuverable and more convenient to install and use. The fully enclosed protective structure makes it safer to operate, and the effect of chip removal and leakage prevention is also very good. At the same time, the hardened guide rail and the PTFE veneer guide rail have a stronger structure and are very wear-resistant. The belt mechanical spindle structure has the advantages of large transmission torque, strong shock resistance, etc., and the processing is more precise. Heavy-duty rollers can maintain the balance of motion, making the CNC Vertical Turning Lathe Machine For Auto Wheel Hub Car Rim smooth for a long time.
Details
| Specification | MACHINE MODLE | Single pole vertical | |
| VTC-series | |||
| 800 | 900 | ||
| Spindle | type | Belt/PM V-ribbed belt | Belt/PM V-ribbed belt |
| Max speed (rpm) | 2500 | 2500 | |
| Spindle nose type | A2-11 | A2-11 | |
| spindle bearing dia | 160 | 160 | |
| spindle taper | - | - | |
| spindle bore dia | - | - | |
| Controller | controller and motor |
Fanuc 0i-TF Plus αiF22-3000(X) αiF30-4000 B(Z)
βisc12-2000 （turret servo）
αil30-7000 (spindle motor） |
Fanuc 0i-TF Plus αiF22-3000(X) αiF30-4000 B(Z) βisc12-2000 （turret servo）
αil30-7000 (spindle motor） |
| X1/X2 axis motor power（KW） | - | - | |
| X1/X2 axis motor torque(N•M) | - | - | |
| X1/X2 axis motor power（KW） | - | - | |
| Z1/Z2 axis motor torque(N•M) | - | - | |
| X-axis motor power（KW） | 4 | 4 | |
| X-axis motor torque(N•M) | 22（rated）/64（maximum） | 22（rated）/64（maximum） | |
| Z-axis motor power（KW） | 7 | 7 | |
| Z-axis motor torque(N•M) | 30（rated）/83（max.） | 30（rated）/83（max.） | |
| turret servo motor power（KW） | 1.4 | 1.4 | |
| turret servo motor torque(N•M) | 10.5 | 10.5 | |
| main motor（rated/max.） power（KW） | 30/37 | 37/45 | |
| spindle（rated/max.） torque(N•M) | 370/570 | 370/570 | |
| WORK RANGE | maximum rotary dia（mm） | ∅800 | ∅900 |
| maximum cutting dia（mm） | ∅620 22¹¹ | ∅730 26¹¹ | |
| maximum cutting length（mm） |
|
|
|
| maximum working height（mm） | 360 12¹¹ | 410 14¹¹ | |
| maximum tool length（mm） | 370 | 430 | |
| saddle rotary dia（mm） |
|
|
|
| TRAVEL AND RAPID MOVING | X1/LEFT（mm） | - | - |
| X2/RIGHT（mm） | - | - | |
| Z1/Z2（mm） | - | - | |
| rapid moving（m/min） | - | - | |
| X/Z-axis travel（mm） | 0～430 | 0～480 | |
| Z-axis travel（mm） | 0～540（minimum distance from turret to chuck face195，maximum195+540） | 0～650 （minimum distance from turret to chuck face195，maximum195+650） | |
| X/Z-axis rapid moving（m/min） | 20 | 20 | |
| Worktable | Center height (mm) | - | - |
| The edge width (mm) | - | - | |
| tool number | servo-hydraulic 6 workstation | servo-hydraulic 6 workstation | |
| Inside tool dia | - | - | |
| Maximum tool size(mm) | - | - | |
| tool interface type | BMT65 | BMT65 | |
| The edge distance（mm） | 360 | 360 | |
| adjacent exchange tool and lock time（sec) | 0.76 | 0.9 | |
| farthest exchange tool and lock time（sec) | 1.32 | 1.6 | |
| ACCURACY | X1/X2/Z1/Z2 Positioning（mm） | - | - |
| X1/X2/Z1/Z2 Repeatabiliting（mm） | - | - | |
| X/Z Positioning（mm） | 0.01（full travel） | 0.01（full travel） | |
| X/Z Repeatabiliting（mm） | 0.005（full travel） | 0.005（full travel） | |
| OTHER | The whole power（KW) | 60 | 60 |
| Coolant capacity（L) | 300/600（High flow of coolant optional） | 300/600（High flow of coolant optional） | |
| Air pressure required（MPa） | 0.65 | 0.65 | |
| size（L*W*H） | 2400*2508*3276 | 2600*2708*3476 | |
| net weight(kg) | 11000 | 12500 | |
