Introduction

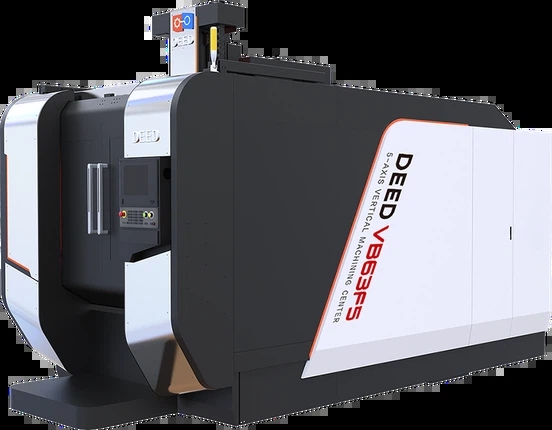

DEED VB63F5 5-Axis Simultaneous CNC Vertical Machining Center is a high-efficiency, high-precision machining equipment. The workpiece can complete complex processing procedures in one clamping process, so this equipment can adapt to the processing of modern molds such as auto parts and aircraft structural parts. Pentaaxis means our device has five axes. The XYZ axis and the ac axis form linkage processing, so it is very good at space surface processing, special-shaped processing, hollow processing, punching, oblique hole, oblique cutting, etc., and its uses are very diverse.

PRODUCT ADVANTAGES

● The gantry frame structure, effectively avoid response overshoot when load is small and response delay when load is large in the cross sliding table mobile workbench structure;

● The basic parts of machine tools are fully made of new type mineral casting, which has excellent vibration absorption and thermal stability;

● Machine tool moving parts using new Germany advanced steel plate welding techniques, with higher rigidity, reducing weight, and improve response speed of the machine tool.

PRODUCT ADVANTAGES

● Adopting portal structure, most of the feed motion is concentrated on the non-load parts, it can help reduce motion inertia and ensure machining quality;

● Adopting portal structure, large span support form can help guarantee the contact rigidity and mechanical rigidity of the base parts;

● Adopting portal structure, the distance from the center of gravity of the spindle box to the cross beam can be greatly reduced, and the machining rigidity of spindle can be guaranteed;

● Equipped with 15,000rpm high-speed direct type spindle with 18,000rpm, 20,000rpm and 24,000rpm electric spindles as options, it can help improve machining effificiency as well as get better surface quality.

PRODUCT ADVANTAGES

● The rotary table adopts servo motor drive cross roller bearing (bearing outer ring is gear ring) dual motor anti-backlash control, to achieve higher bearing capacity of the table; At the same time, it is equipped with angle grating ruler to meet the requirements of 8" high positioning accuracy for any indexing of the rotary table, it is also equipped with a 4-point positioning device, so that the indexing of the rotary table can meet the high-precision positioning requirements of ±4";

● The X, Y, and Z servo axes adopt the form of a servo motor directly connected to a precision planetary gearbox to drive a large-diameter, high-precision double-nut ball screw; the guide rail of the machine tool adopts roller type to maintain strong cutting rigidity.

Features

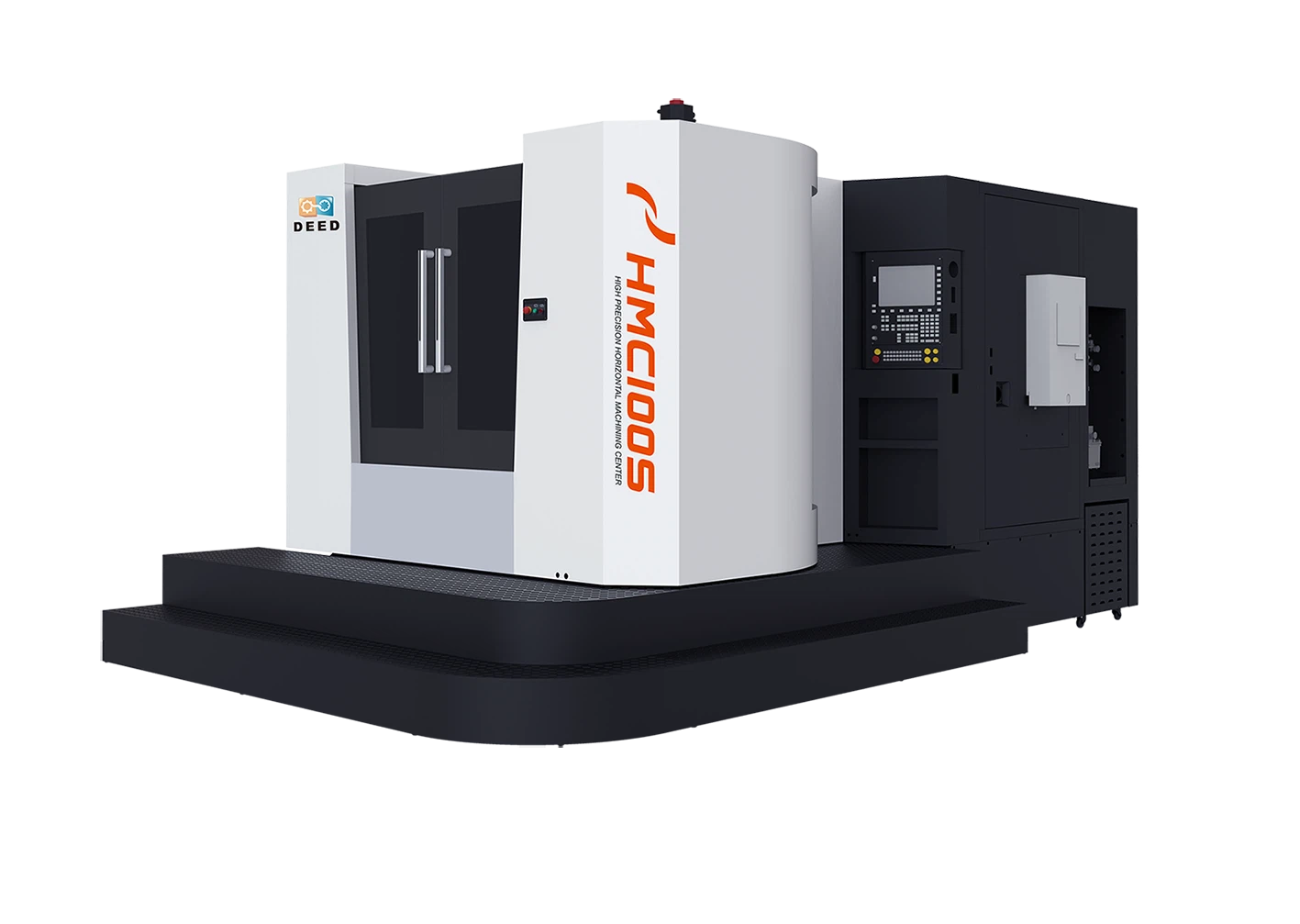

DEED HMC100S single pallet CNC horizontal machining center is mainly used for processing boxes, shells and special-shaped parts in automobile and motorcycle industries, especially in automobile engine housings, reducer housings, molds and general machinery industries. Its basic large pieces have adopted first-class research and development means such as new mineral materials, 3D synchronous design, finite element and finite element analysis. After reasonable layout, they have good deformation resistance, bending resistance and super precision stability.

Product Information

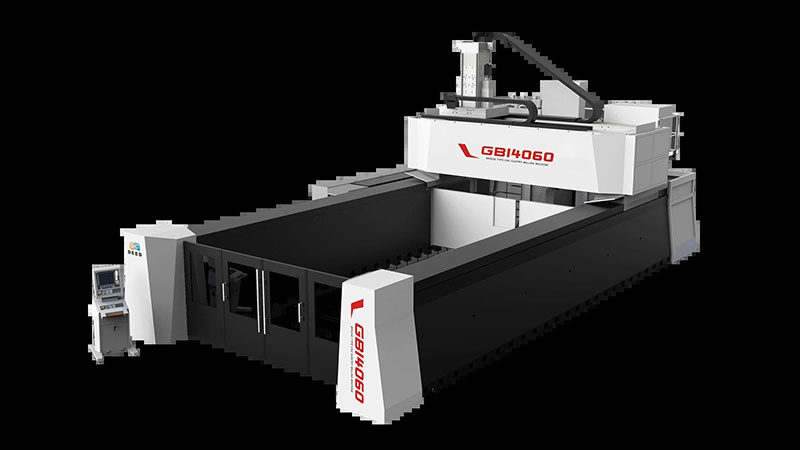

The GB14060 5-axis portal bridge machining center adopts simple drive chain, and the X axis, Y axis and Z axis motion adopt servo motor direct drive mechanism. The high-precision ball screw pair is used for the transmission of all directional feeding movement, with good transmission rigidity, high precision and long service life. The spindle is a high-precision mechanical spindle made in Taiwan, driven by synchronous belt, with high precision, large torque and stable operation. Its guide rail adopts high-precision linear guide rail, and simple and reliable transmission ensures stable and reliable working accuracy of gantry machining center.
